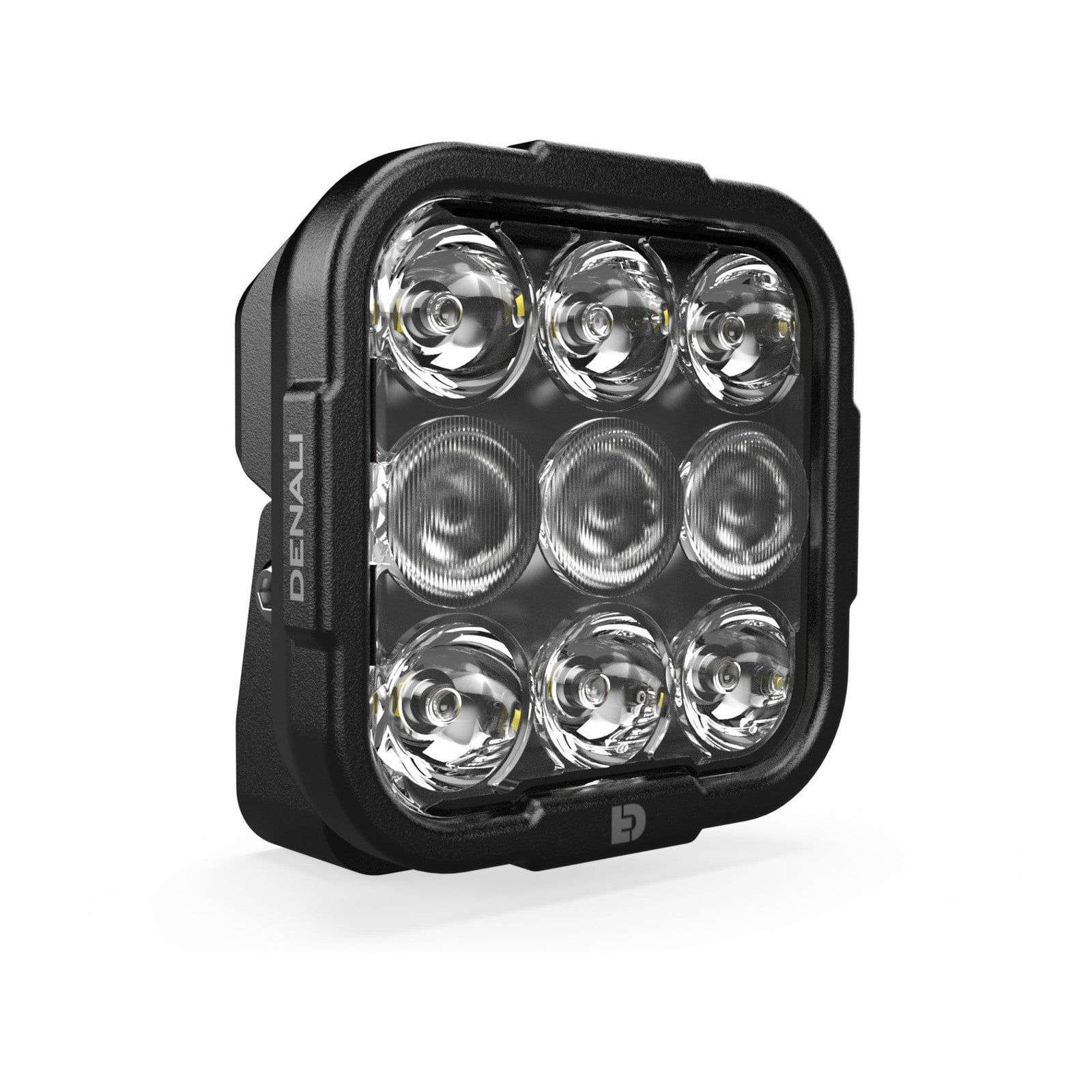

Denali DL9 Driving Light - DataDim Technology, 9-LED, Elliptical Hybrid Beam

Introducing the brightest and most durable motorcycle driving lights that won’t break the bank. Engineered from over a decade of customer feedback, the DL Series Driving Lights deliver best-in-class beam performance, unmatched durability, and DENALI’s signature dimming technology at a price point that’s more accessible to new riders, younger riders, and a growing global community.

How can they be this good and still so affordable? Thanks to our single-piece TIR optic and robotically sealed construction, we’ve reduced parts count, accelerated assembly, and lowered production costs—without compromising on top-bin LEDs, circuitry, or optical design. The result is an indestructible, fully submersible light pod that delivers more light per dollar than any competitor.

All DL Series lamps are available in white, amber, or selective yellow beam options and are plug-and-play compatible with all DENALI lighting harnesses and controllers.

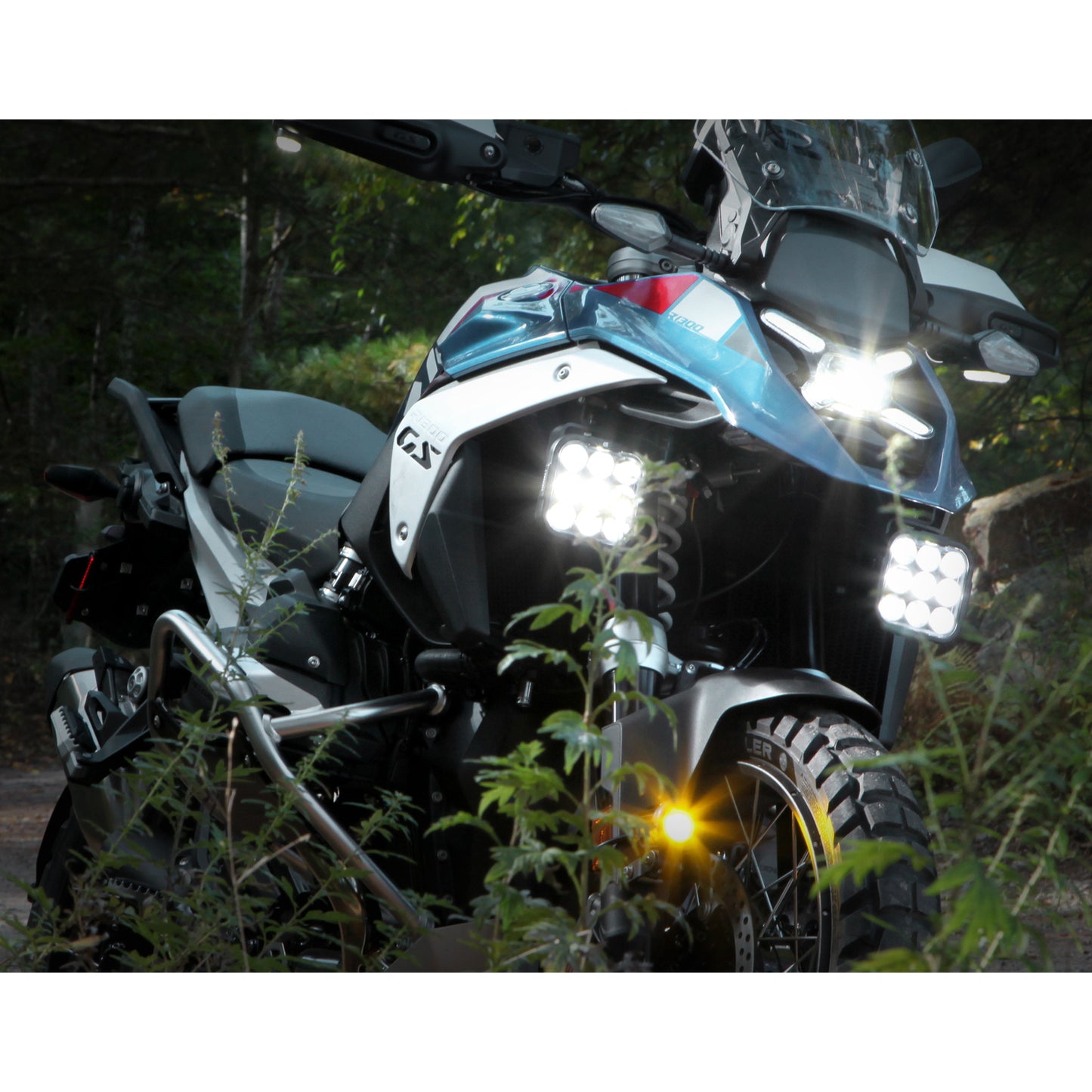

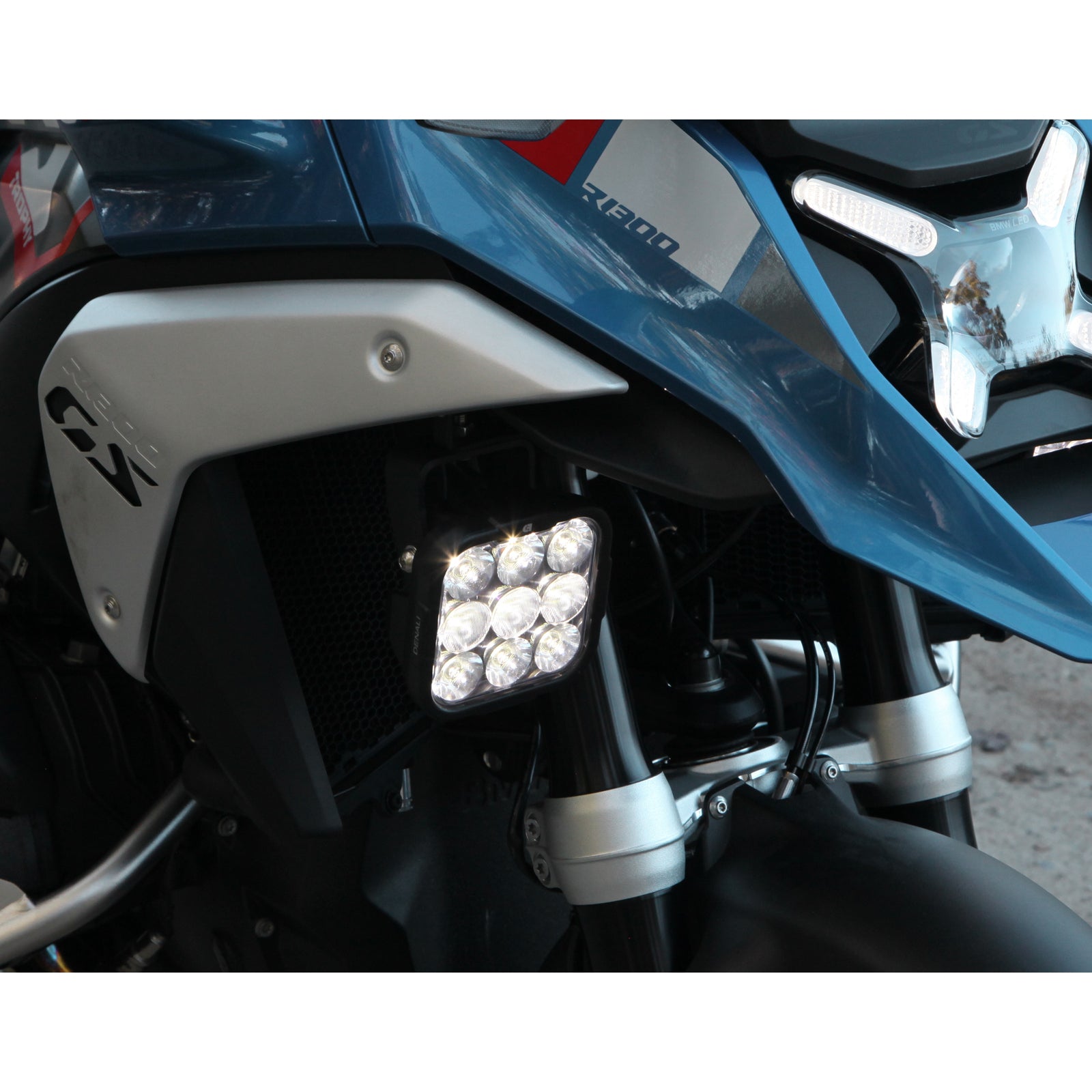

The DL9 is an absolute beast that cares more about destroying darkness than looking pretty. Its 9-LED square profile may be oversized for smaller bikes, but it looks right at home on heavyweight ADV machines seeking maximum light output without breaking the bank.

Features:

• HiDrive LEDs – 15,300 Lumens Per Pair: Top-bin CREE LEDs driven at 8W each deliver a powerful beam in a rugged 9-LED square housing.
• Oversized TIR Optics – Hybrid Driving Beam: Proprietary TIR optics provide unmatched distance and width compared to traditional reflectors.
• DataDim™ Plug-and-Play Dimming: 3-wire design enables seamless connection to DENALI harnesses, DialDim, and CANsmart controllers.
• DrySeal™ Sealed Beam Construction: Robotically sealed lens and internal potting guarantee 100% waterproof, submersible performance.
• Overbuilt, Not Overpriced: 4mm powder-coated steel brackets, robust heatsink, and UV-hardened polycarbonate lenses rated for 21grms vibration.
• ECE Compliant Driving Beam: Street-legal driving beam for EU use as a primary or auxiliary high beam (white only).

Specifications (Single / Pair)

• LEDs: Cree XPL HI (8W each)
• Watts: 72W | 144W
• Amp Draw: 6A | 12A
• Raw Lumens: 7,650 | 15,300
• Beam Distance: 1380 ft (421 m) | 1835 ft (560 m)
• Beam Width: 230 ft (70 m) | 306 ft (93 m)
• Connector: DataDim compatible 3-wire DT
• Colour Temperature: 6000K
• Operating Voltage: 9–32 VDC
• Pod Size: 4.5" × 4.5" × 2"
• Pod Weight: 2.2 lb | 4.4 lb
• IP Rating: IP68 & IP69K (waterproof, submersible, high-pressure spray)
• Beam Certification: ECE R149 Driving Beam (Aux High Beam)
• EMC: R10, CISPR 25, CE, UKCA compliant

Wiring and Switching Options

For 2022, DENALI expanded the DL Series kit to offer customizable wiring and control solutions. Choose the option that best fits your vehicle and budget:

• Standard Powersports Harness: Waterproof switch, low-profile, ideal for single-intensity installs.
• Standard Automotive Harness: Added length with flush-mount illuminated rocker switch.
• Premium Powersports Harness: Overmolded wiring and premium illuminated handlebar switch.
• DataDim Module: Enables intensity changes synced with factory high-beam switch.
• DialDim Lighting Controller: Full-featured controller with independent dimming, strobe, flash, signal sync, electronic fuses, and battery monitoring.

What’s Included:

Single Light Pod Kit:

• 1 × Light Pod with mounting hardware
• 1 × 3-wire pigtail

Pair Light Pod Kit:

• 2 × Light Pods with mounting hardware
• 2 × 3-wire pigtails

Note: Light pods and harness options are packaged separately in their respective retail packaging.
